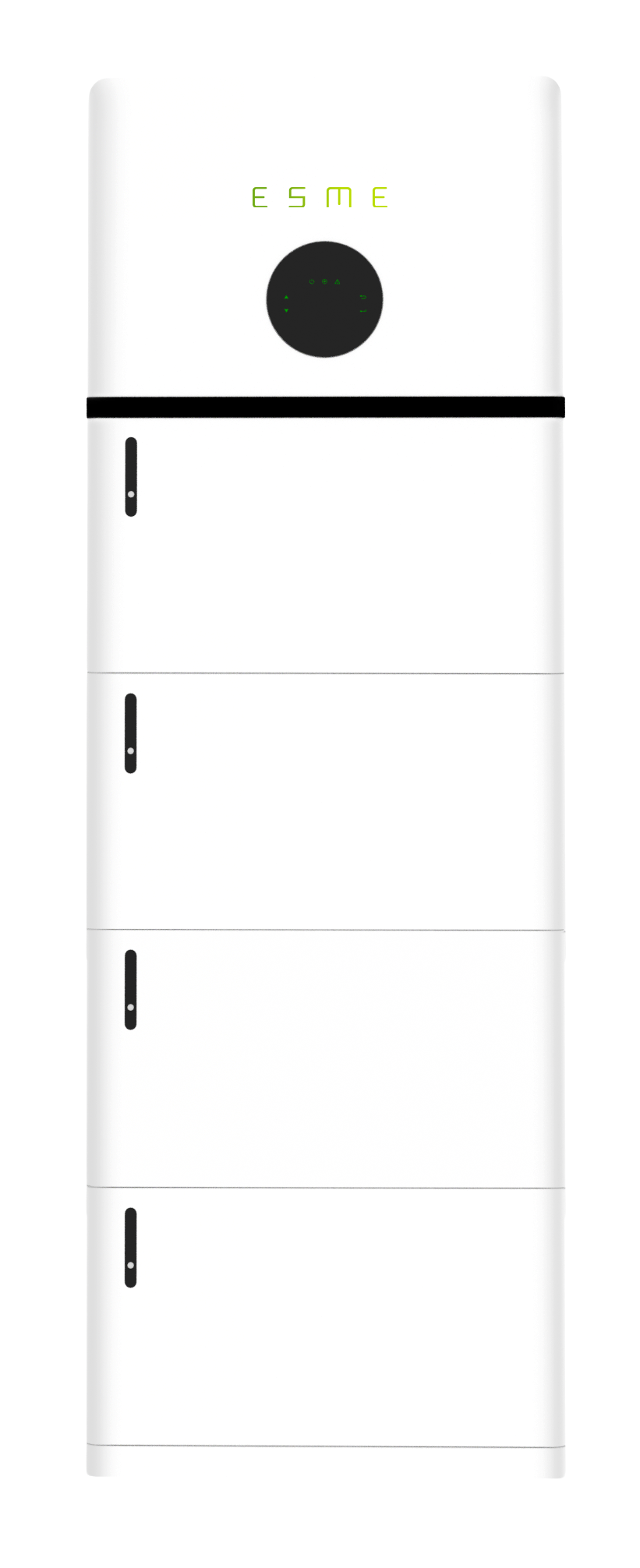

The owner's manual and specification sheets for the ESME Power Tower, model ONE-1P-6K-A.

Specification

Output
6,000W, 28A, single phase, 230V, 50/60Hz
Battery chemistry
LFP (lithium iron phosphate)
Capacity
5kWh per battery, from 5kWh to 25kWh in one tower
Cycle life
6,000 cycles at 80% depth of discharge, 25°C
Battery voltage
44.8V to 57.6V
Charge and discharge current
50A single, 100A multiple
Solar input
Up to 9kW, 2 MPPT trackers, 550V maximum
Efficiency
98.1% maximum, 96.8% battery to AC
Operating temperature
Charging -20°C to 60°C, discharging 0°C to 55°C
Enclosure
IP66, NEMA4X
Cooling
Intelligent fan
Weight
Inverter 25kg ± 1, battery 50.5kg ± 1
Size
Battery 600 × 360 × 215mm, inverter 600 × 430 × 210mm (W × H × D)
Tower height
790mm with one battery, up to 2,070mm with five
Warranty
Batteries 10 years, inverter 10 years
Inverter certifications
G98/G99, IEC62109-1, IEC62109-2
Battery certifications
IEC62619, IEC63056, IEC61000-6-1, IEC61000-6-3, IEC62477-1, IEC60730, IEC62040
